Technical Specifications
*Housing: ABS anti flame according UL standard N° 3110
*Base plate: stainless steel AISI 304 surgical # 0.9 mm
*Collector tray: stainless steel AISI 304 surgical # 0.5 mm.
*Incineration Chamber electrodes: cooper base plate and and silver +
*cadmium oxide contact 14,00 x 8,00 x 1,00 mm (high performance).
- Dimensions:: Wide: 170 mm / Length: 220 mm / High: 95 mm
- Weight: 2,8kg
- Power Consumption: Stand by: 25 W / Work: 330 W
- Power Supply: 110 or 220 Vca - Working Voltage: 2,4 Vca
- Packing: Box/4 units: 13,5 Kg - 37 dm3

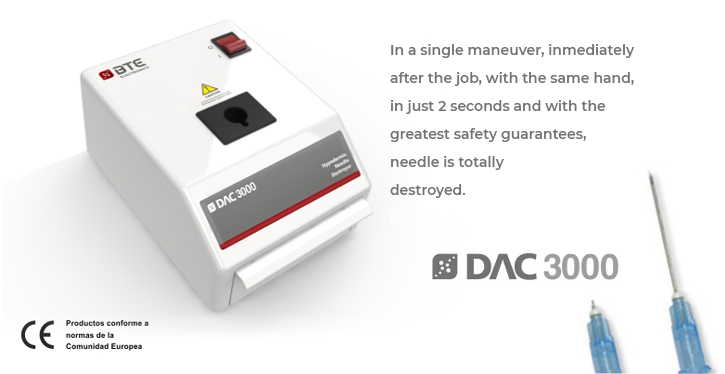

CE Declaration of Conformity, this is according ISO Guide 22 and EN 45014 upon UE requirements. DAC 3000 fall under sanitary product of low risk classification: Sanitary Product Class 1.
